Blueprints (Beta)

A Blueprint composes several already-published KDP services into a single new service, publishable kind. Instead of asking platform users to create a PostgresInstance, a Repository and an App separately and wire them together, a platform engineer authors one Blueprint — for example a WebappStack or a pair of databases — publishes it to the service catalog, and users then create a single object that fans out into all the composed children.

This guide is written for the Blueprint author (a platform engineer or service owner). For consuming a published Blueprint, see Consuming Blueprints.

Concepts

A Blueprint is authored as a BlueprintDefinition (blueprints.kdp.k8c.io/v1alpha1, namespaced). Its core is a kro ResourceGraphDefinition (RGD) stored in spec.resourceGraph, which describes:

• a schema — the synthesized kind’s own spec/status (what consumers fill in), and
• a list of resources — the child service objects to create, templated with CEL references such as ${schema.spec.size} and cross-references between children.

The child kinds must be services that are already published and bound in the workspace where the Blueprint is authored (each child follows its own api-syncagent path to its service cluster — the Blueprint layer is invisible to the underlying services).

Lifecycle

A BlueprintDefinition moves through:

Draft → Validating → Valid | Invalid → Published → Deprecated

• Validation checks that every (apiVersion, kind) in the graph resolves to a service available in the workspace (a kind that does not resolve almost always means the service is not bound), and that the RGD’s CEL expressions, field references and acyclicity are correct.
• Publishing (spec.published: true, while Valid) emits three artifacts into the same workspace: an APIResourceSchema, an APIExport, and a Service (the catalog entry). The synthesized consumer kind is served under <kind>.blueprints.kdp.k8c.io.
• spec.deprecated: true marks the Blueprint as deprecated. This is a hint surfaced by the KDP dashboard (which discourages creating new instances) — it is not enforced by the backend, so instances can still be created via the API. Existing instances keep working.

Authoring a BlueprintDefinition

The example below defines OrderApp Databases — a Blueprint that provisions two PostgresInstance databases (a primary and a replica) that share a common storage size.

apiVersion: blueprints.kdp.k8c.io/v1alpha1
kind: BlueprintDefinition
metadata:
  name: database-orderapp
  namespace: default
spec:
  version: v0.1.0
  published: true
  deprecated: false
  # Mirrored onto the generated Service for the catalog / dashboard.
  catalogMetadata:
    title: OrderApp Databases
    category: Databases
    description: Provisions two PostgreSQL databases for the OrderApp, sharing a common storage size.
  # A kro ResourceGraphDefinition, stored verbatim.
  resourceGraph:
    apiVersion: kro.run/v1alpha1
    kind: ResourceGraphDefinition
    metadata:
      name: databaseorderapp
    spec:
      # The synthesized kind consumers will create.
      schema:
        apiVersion: v1alpha1
        kind: DatabaseOrderApp
        spec:
          name: string
          size: string
      # The composed child services.
      resources:
        - id: primary
          template:
            apiVersion: dbms.example.corp/v1alpha1
            kind: PostgresInstance
            metadata:
              name: ${schema.spec.name}-primary
            spec:
              parameters:
                storageSize: ${schema.spec.size}
              writeConnectionSecretToRef:
                name: ${schema.spec.name}-primary-conn
        - id: replica
          template:
            apiVersion: dbms.example.corp/v1alpha1
            kind: PostgresInstance
            metadata:
              name: ${schema.spec.name}-replica
            spec:
              parameters:
                storageSize: ${schema.spec.size}
              writeConnectionSecretToRef:
                name: ${schema.spec.name}-replica-conn

Apply it with kubectl apply -f in the workspace where the composed services are bound. Once the object is Valid and published, the Blueprint appears in the service catalog as just another service — the same entry, the same Add to Organization flow, the same APIBinding. Consumers never have to know it is a composition: they enable it and create one object, exactly as they would for a single service.

Authoring in the dashboard

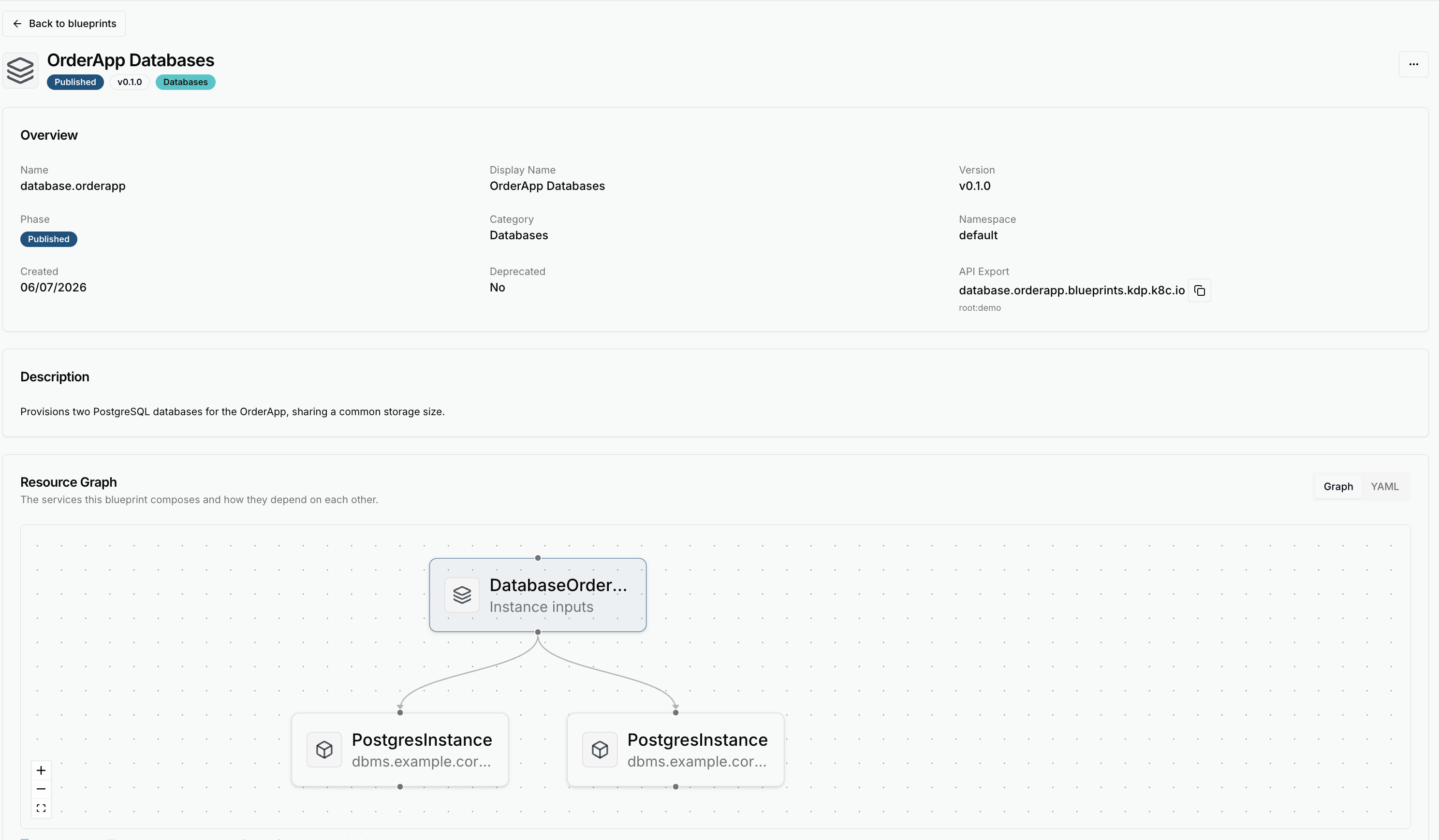

In the dashboard you author a Blueprint by editing its resource graph as YAML, helped by an AI assistant panel (see Building Blueprints with AI below) that drafts and edits that YAML for you. The dependencies between the composed services are shown as a read-only graph; you cannot build the graph by dragging nodes. Published Blueprints get a detail page with an Overview, the Description, and a Resource Graph you can inspect either as that read-only diagram or as the underlying RGD YAML.

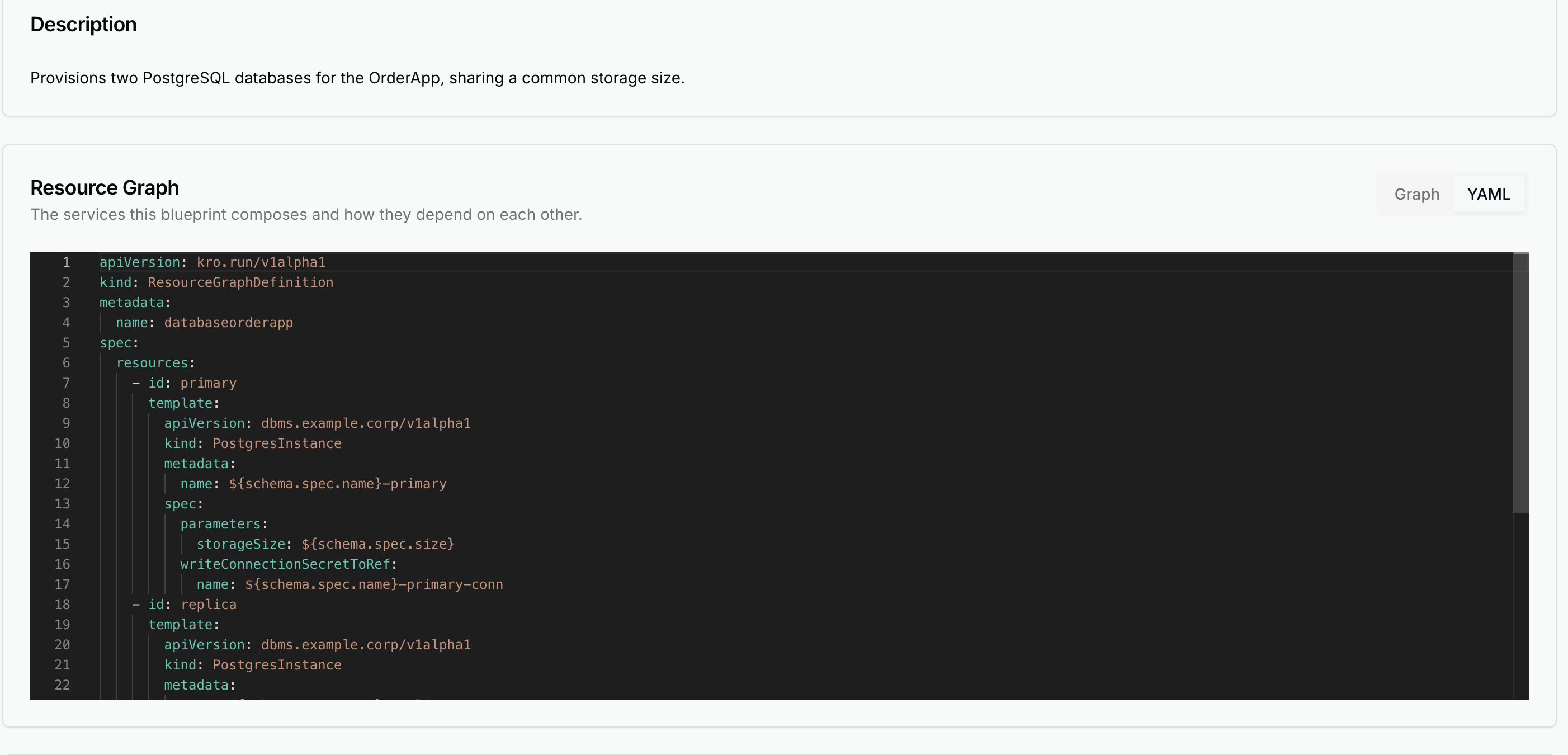

Switching the Resource Graph panel to YAML shows the kro ResourceGraphDefinition backing the Blueprint:

Building Blueprints with AI

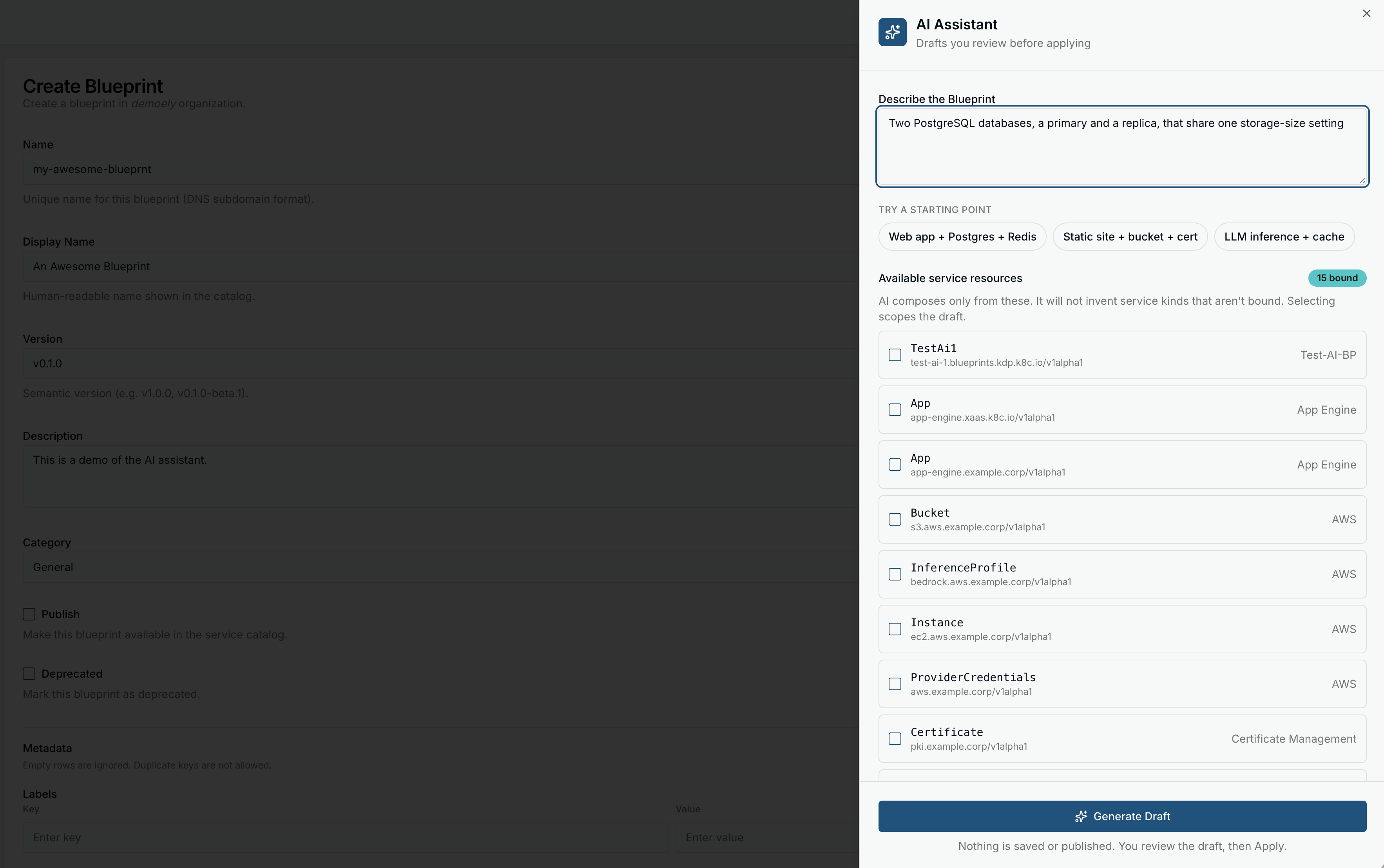

Writing a kro ResourceGraphDefinition by hand means knowing the exact kind, apiVersion, fields and CEL wiring of every service you compose, plus kro’s SimpleSchema grammar for the knobs you expose. The AI assistant in the dashboard’s Blueprint editor lets you describe the outcome in plain language and drafts that YAML for you.

What it’s grounded in. The assistant is given the services currently bound in your workspace as its only building blocks, each with its real schema. It composes only those kinds, and this is enforced: if a draft references a kind that isn’t one of your bound services, it is rejected rather than shown. This is the same constraint you would hit authoring by hand — a Blueprint can only compose services that resolve in the workspace. Alongside the graph the assistant also proposes catalog metadata (title, description, category) that pre-fills the Blueprint’s catalogMetadata.

The assistant works in three modes:

Example. The prompt “Two PostgreSQL databases, a primary and a replica, that share one storage-size setting” — against a workspace where a PostgresInstance service is bound — drafts a graph with a size knob on the Blueprint’s own schema wired into both child databases, much like the OrderApp Databases example above.

Review before publishing. The output is a draft loaded into the editor; nothing is published automatically. It goes through exactly the same lifecycle as a hand-written graph (Draft → Validating → Valid) before you set spec.published: true, and it is checked to be structurally well-formed (valid kro spec, single-pipe SimpleSchema markers, resources limited to your bound services) before it ever reaches the editor.

Blueprint logos

A Blueprint can carry a logo for the catalog; the dashboard stores Blueprint logos in ConfigMaps. Set it through the dashboard’s Blueprint editor.

Service Catalog

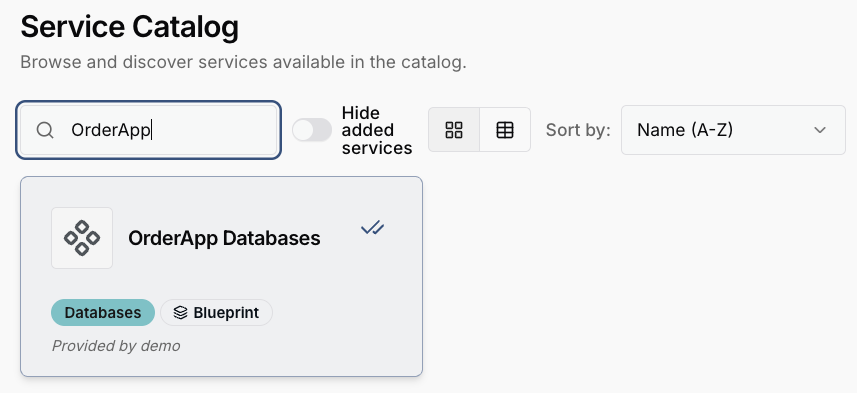

Publishing a Blueprint places it in the service catalog as a service. The generated Service object is the catalog entry, and it sits next to the regular services: the same card, the same search and category filters, the same Add to Organization button. The only visible difference is a Blueprint badge marking the entry as a composition — everything else a consumer does with it is ordinary service consumption.

The entry’s title, category and description come from the spec.catalogMetadata you set on the BlueprintDefinition; the badge and the logo are added by the dashboard.

For the consumer’s side of this — enabling the entry and creating an instance — see Consuming Blueprints.
